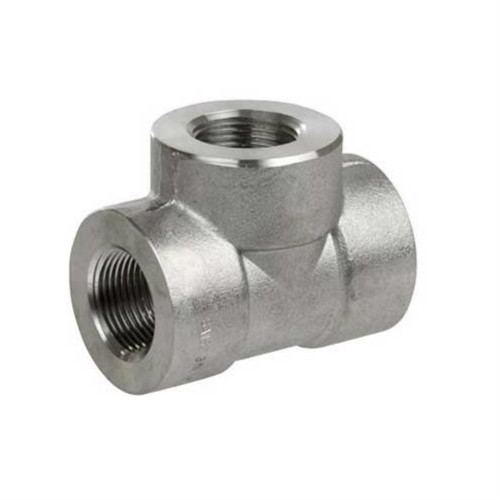

Threaded / Screwed Tee

Threaded / Screwed Tee

ASME B16.11 Threaded Tee, which is very much resistant to chemical corrosion and oxidation (corrosion resistant), and has some high stress-rupture effectiveness and low creep rates under high stresses at temperatures after suitable heat treatment. Threaded Equal Tee is either used to combine or split a fluid flow. Threaded Pipe Tee has the same inlet and outlet sizes. Threaded Tee Fittings are used in different industries applications like chemical processing, oil refineries, petrochemical and many other industries. We also supply Forged Threaded Tee in customized size as per customer requirement. We manufacture Threaded Tee Dimensions in accordance with ASME B16.11 / BS 3799. The B16.11 standard covers pressure-temperature ratings, dimensions, marking, tolerances and material requirements.

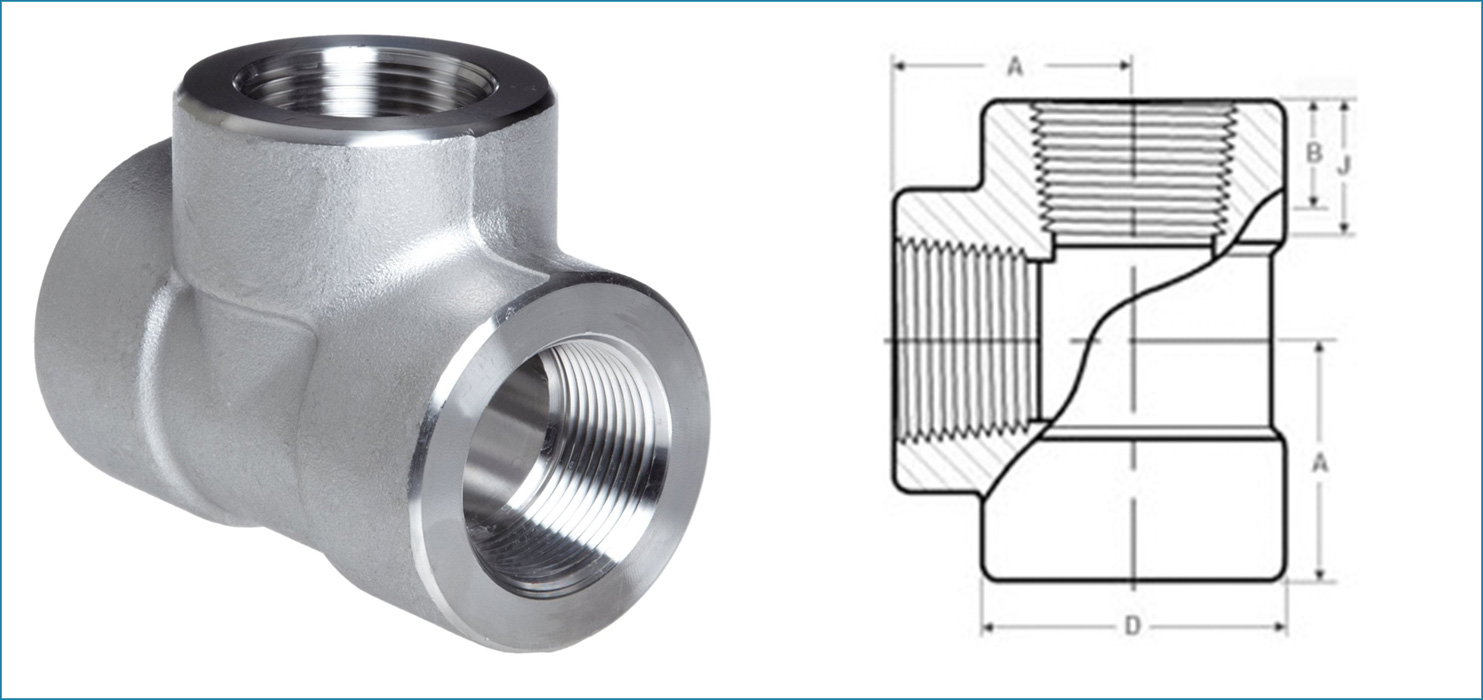

Product Structure

ANSI/ASME B16.11 Threaded Pipe Tee Standard Specification

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)
Class 3000 LBS, 6000 LBS, 9000 LBS
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form Threaded Tee, Threaded Pipe Tee, Threaded Equal Tee
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel



Manufacturing Standards of Threaded Equal Tee

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2



ASME B16.11 Threaded Tee Material Grades



Stainless Steel Forged Threaded Tee :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Threaded Equal Tee:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Threaded Tee:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Threaded Equal Tee :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Threaded Tee : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded Equal Tee:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
