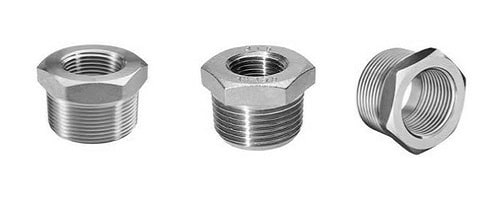

Threaded / Screwed Bushing

Threaded / Screwed Bushing

They use premium quality raw material and charge reasonable prices so that each client can avail their products. Stainless Steel Screwed Bushings are the pipe fittings in which the external thread is larger than its internal thread. This allows two pipes of different sizes to be connected. It can be used to reduce the threaded fittings. These ANSI B16.11 Forged Threaded Bushings can be used in various application industries such as oil, gasoline, hydraulic machinery, fertilizing or chemical processing. One of the main features of Threaded Bushings is that it is permanently leakage proof. These fittings are easy to install and are corrosion resistant. They have high performance and provide long-lasting services.

Product Structure

ANSI/ASME B16.11 Threaded Bushing Standard

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8″ NB TO 4″ NB
Class 3000 LBS, 6000 LBS, 9000 LBS
Type Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form Threaded Bushing, Hex Head Bushing, Reducing Bushing
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

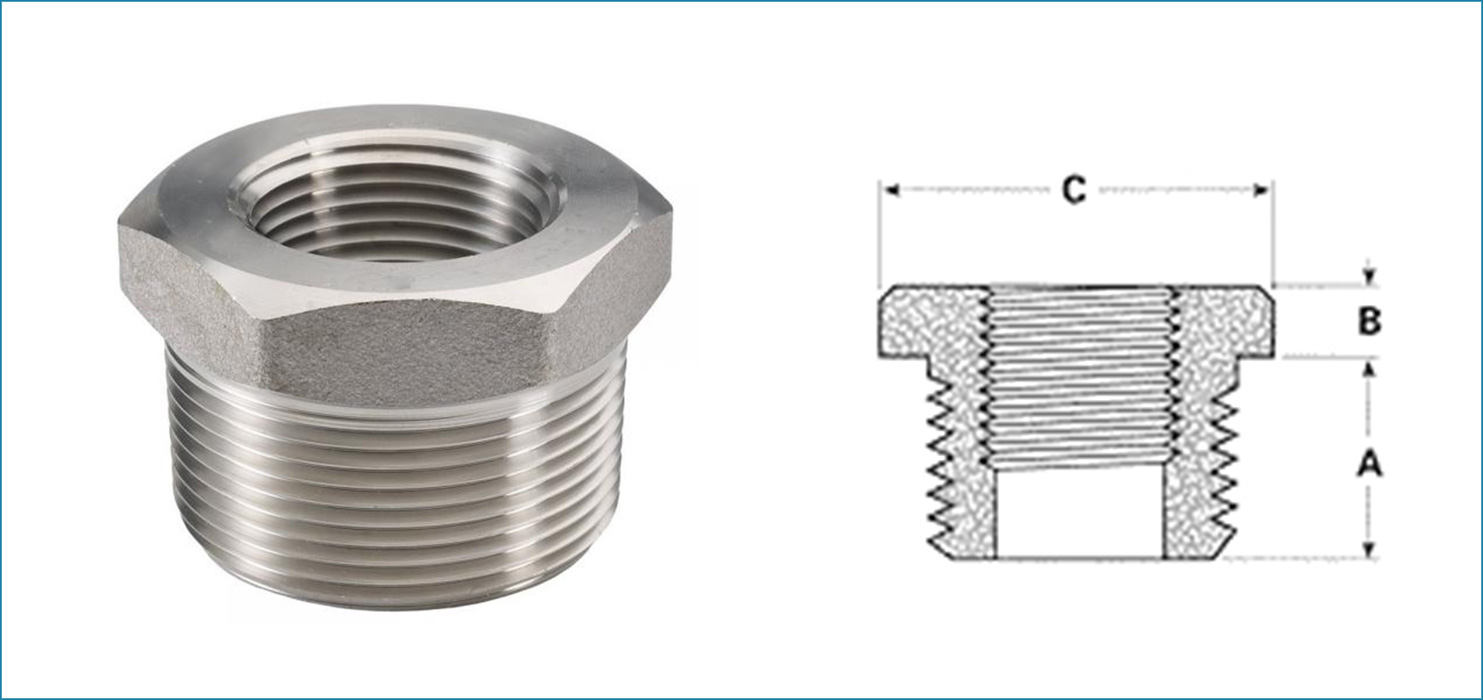

ASME B16.11 Threaded Hex Head Bushing Dimensions Standrad

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2



ASME B16.11 Threaded Bushing Material



ASME B16.11 Stainless Steel Forged Threaded Bushing :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Hex Bushing:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel ASME B16.11 Forged Threaded Reducing Bushing:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

ASME B16.11 Alloy Steel Forged Threaded Pipe Bushing:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

ASME B16.11 Copper Alloy Steel Forged Threaded Hex Bushing: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded ASME B16.11 Hex Head Bushing:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
