Socket Weld Pipe Cap

Socket Weld Pipe Cap

Socket Weld Full Couplings are used to connect small bore pipes as a projection of a welding effect on the pipe bore. Both the ends of these Full Couplings are threaded. They are highly demanded in the pipe fitting market. These Stainless Steel Socket Weld Half Couplings are rigorously tested to ensure the highest quality and endurance under any extreme conditions. These ANSI B16.11 Forged Socket Weld Full Couplings are used in applications such as pharmaceuticals, shipbuilding, etc. their clientele the ASME B16.11 Forged Socket Weld Full Couplings at reasonable prices. They are provided in different sizes and thickness for the specific needs of the customers.

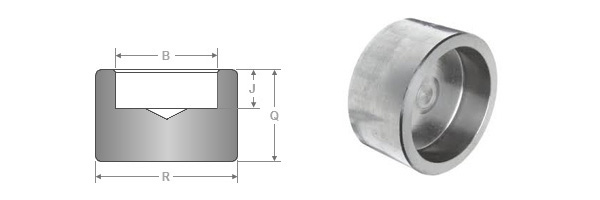

Product Structure

ANSI/ASME B16.11 Socket Weld Cap-Standard Specification

Dimensions ASME 16.11, MSS-SP-79, MSS-SP-95, 83, 95, 97, BS 3799
Size 1/8″ NB TO 4″ NB
Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form Socket Weld Cap, Socket Weld End Cap, Socket Weld Pipe Cap
Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low-temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards of Socket Weld End Pipe Cap

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2



Forged Socket Weld Pipe Cap Material Grades

Nickel Alloy Forged Socket Weld Pipe Cap :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOYY C 276)

Stainless Steel Forged Socket Weld Pipe Cap :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Socket Weld Pipe Cap :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Socket Weld Pipe Cap :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Socket Weld Pipe Cap :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Socket Weld Pipe Cap : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)
