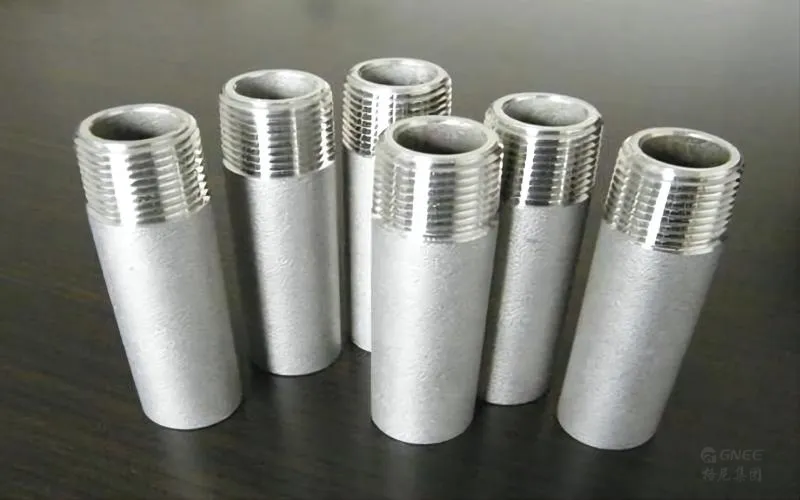

Threaded / Screwed Pipe Nipple

Threaded / Screwed Pipe Nipple

Threaded / Screwed Pipe Nipples are also referred to by another term, that is, Barrel Nipples. This fitting is known to be a short stub of the pipe which has two male ends. Stainless Steel Threaded Pipe Nipples are commonly used for plumbing and houses. ANSI B16.11 Forged Screwed Pipe Nipples are often used in funnels and pipes. These Threaded Pipe Nipples are available in different shapes, sizes, specification and thickness according to the customers’ requirements.These fittings are used in various application industries like oil refineries, chemical processing, petrochemical, cement industry, etc.

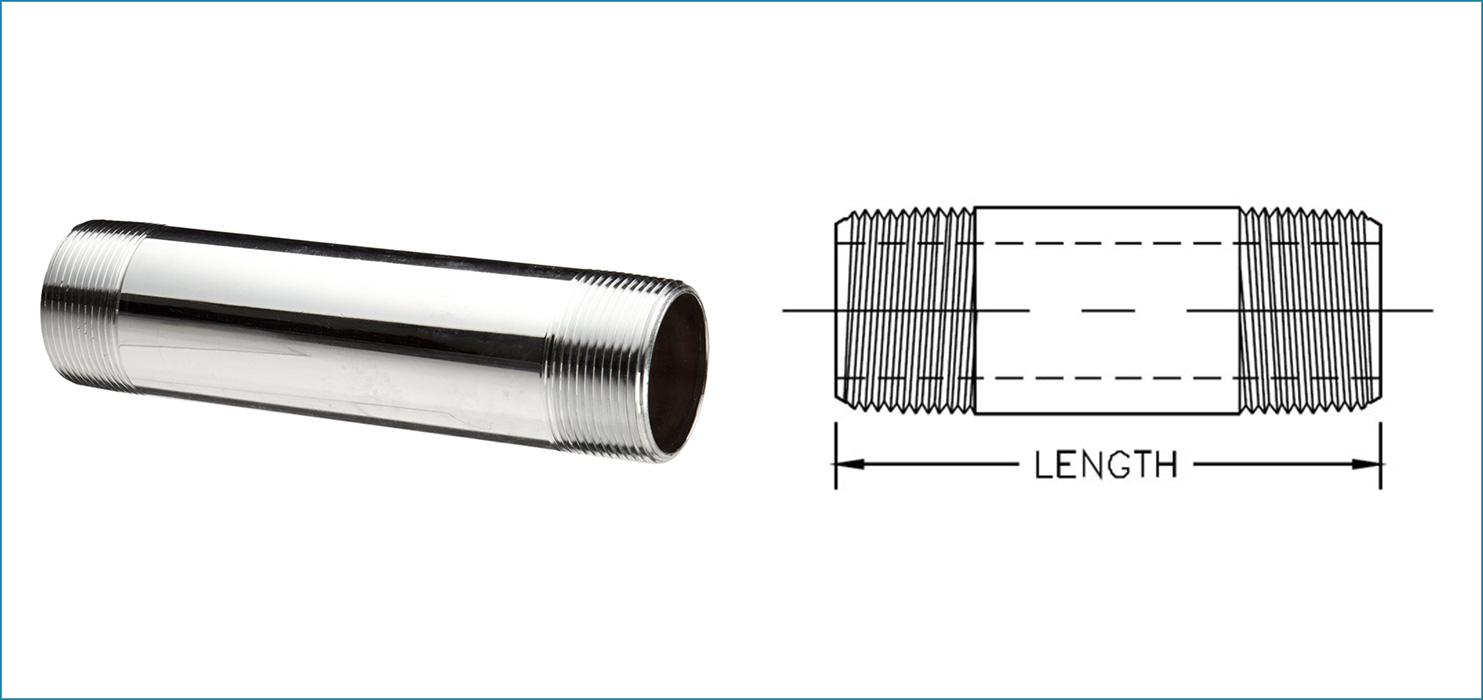

Product Structure

Threaded Pipe Nipple Specification

Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799

Size : 1/2″NB TO 4″NB IN

Class : 3000 LBS, 6000 LBS, 9000 LBS

Type : Threaded (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Form : Threaded Pipe Nipple

Dimensions Standard of Threaded Pipe Nipple

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2



ASME B16.11 Threaded Pipe Nipple Material



ASME B16.11 Stainless Steel Forged Threaded Pipe Nipple :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Pipe Nipple :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel ASME B16.11 Forged Threaded Pipe Nipple:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

ASME B16.11 Alloy Steel Forged Threaded Pipe Nipple:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

ASME B16.11 Copper Alloy Steel Forged Threaded Pipe Nipple: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded ASME B16.11 Pipe Nipple:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
