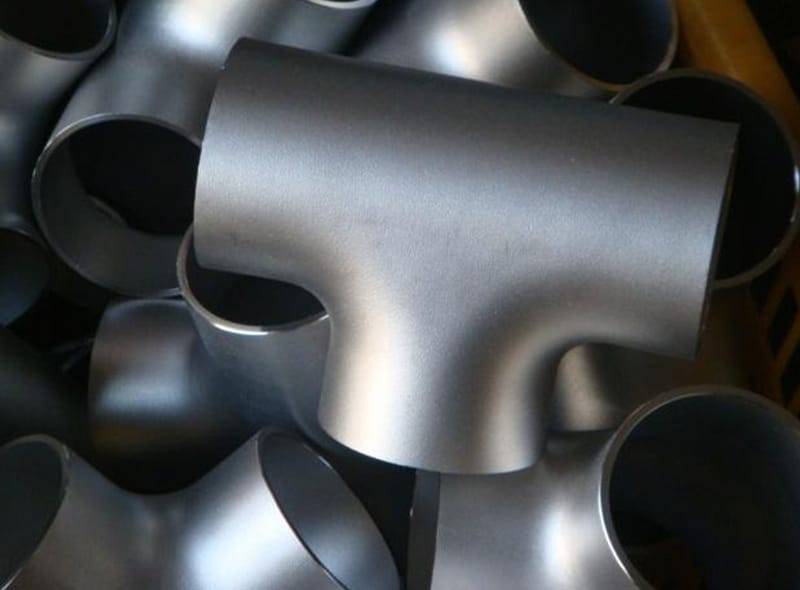

Buttweld Tees

A butt-welded tee is a type of pipe fitting used to combine or divide the flow in a piping system. It is shaped like the letter “T” and has three openings—one inlet and two outlets, or vice versa. This fitting allows fluids or gases to be redirected through the system and is essential in branching pipelines. The “butt-welded” design means it is welded directly to the pipes, forming a strong, leak-proof connection, making it suitable for high-pressure and high-temperature applications.

Butt-welded tees are typically manufactured according to standards like ASME B16.9, and are made from materials such as carbon steel, stainless steel, or alloy steel based on the system requirements.

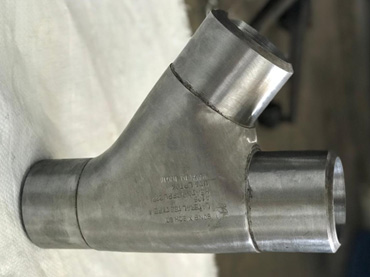

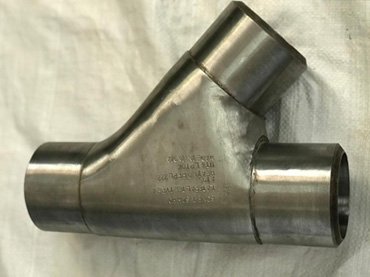

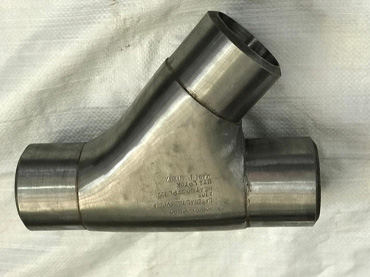

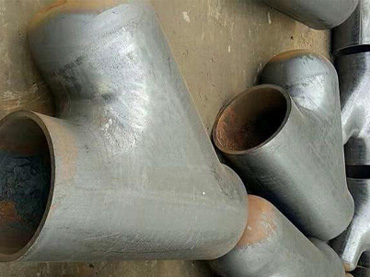

Types of Butt-Welded Tees:

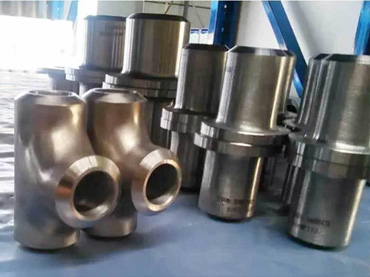

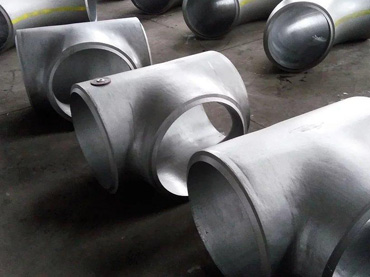

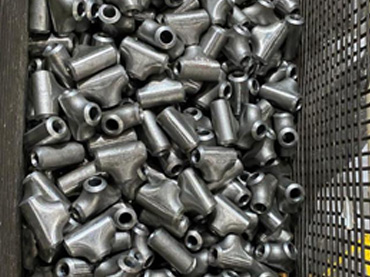

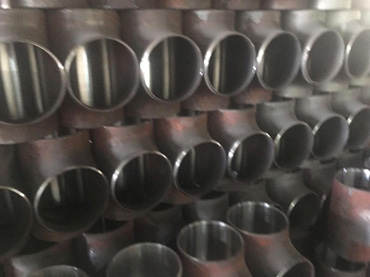

1. Equal Tee (Straight Tee) :
In this type, all three branches (main pipe and branch outlet) are of the same diameter. It is used when the flow needs to be evenly split or combined.

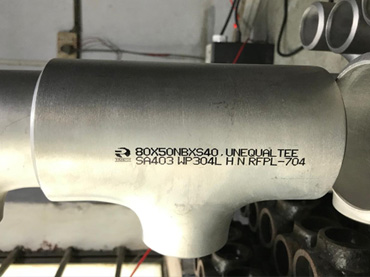

2. Reducing Tee:
In this type, the branch outlet is smaller than the main pipe. It is used to connect a smaller diameter branch line to a larger main pipeline, allowing smooth flow transition.
These tees are widely used in industries like oil & gas, chemical processing, power plants, and water treatment systems for their durability and performance in critical conditions.

Pipe Tee Material Grades

Stainless Steel Tee	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Tee	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Tee	ASTM A420 WPL3, A420 WPL6
Alloy Steel Tee	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Tee	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Tee	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

T1 = Thickness of Branch will correspond to ITS NB & Sch

Size:½" NB to 24" NB

Thickness: Sch 5 - Sch 80

Material: Stainless Steel, Carbon Steel and Alloy Steel

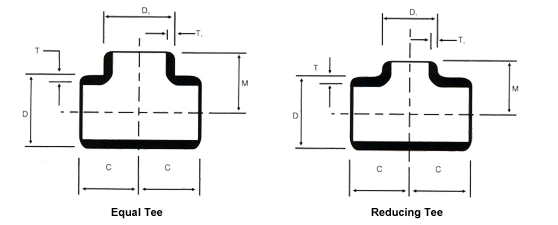

Dimensions

Run NB		Branch NB		D Run	D1 Branch	T/T1			C ±2	M ±2
IN	MM	IN	MM	D Run	D1 Branch	SCH. 10S	SCH. 40S	SCH. 80S	C ±2	M ±2
1/2		1/2	15	21.3	21.3		2.77	3.73	25	25
3/4	20	3/4	20	26.7	26.7	2.11	2.87	3.91	28	28
3/4	20	1/2	15	26.7	21.3
1	25	1	25	33.4	33.4	2.77	3.38	4.55	38	38
1	25	3/4	20	33.4	26.7				38	38
1	25	1/2	15	33.4	21.3				38	38
1 1/4	32	1 1/4	32	42.2	42.2	2.77	3.56	4.85	48	48
1 1/4	32	1	25	42.2	33.4				48	48
1 1/4	32	3/4	20	42.2	26.7				48	48
1 1/4	32	1/2	15	42.2	21.3 ,				48	48
1 1/2	40	1 1/2	40	48.3	48.3	2.77	3.68	5.08	57	57
1 1/2	40	1	25	48.3	33.4				57	57
1 1/2	40	3/4	20	48.3	26.7				57	57
1 1/2	40	1/2	15	48.3	21.3				57	57
2	50	2	50	60.3	60.3	2.77	3.91	5.55	64	64
2	50	1 1/2	40	60.3	48.3				64	60
2	50	1 1/4	32	60.3	42.2				64	57
2	50	1	25	60.3	33.4				64	51
2	50	3/4	20	60.3	26.7				64	44
2 1/2	65	21/2	65	73.0	73.0	3.05	5.16	7.01	76	76
2 1/2	65	2	50	73.0	60.3				76	70
2 1/2	65	1 1/2	40	73.0	48.3				76	67
2 1/2	65	1	25	73.0	33.4				76	57
3	80	3	80	88.9	88.9	3.05	5.5	7.6	86	86
3	80	21/2	65	88.9	73.0				86	83
3	80	2	50	88.9 '	60.3				86	76
3	80	1 1/2	40	88.9	48.3				86	73
4	100	4	100	114.3	114.3	3.05	6.02	8.55	105	105
4	100	3	80	114.3	89.9				105	98
4	100	21/2	65	114.3	73.0				105	95
4	100	2	50	114.3	60.3				105	89
4	100	1 1/2	40	114.3	48.3				105	86
5	125	5	125	141.3	141.3	3.40	6.55	9.53	124	124
5	125	4	100	141.3	114.3				124	117
5	125	3	80	141.3	88.09				124	111
5	125	2	50	141.3	60.03				124	105
6	150	6	150	168.3	168.03		7.11	10.97	143	143
6	150	5	125	168.3	141.03	3.4			143	137
6	150	4	100	168.3	114.03				143	130
6	150	3	80	168.3	88.09				143	124
6	150	2 1/2	65	168 3	73				143	121
8	200	8	200	219.1	219.01		8.18	12.7	178	178
8	200	6	150	219.1	168.03	3.76			178	168
8	200	5	125	219.1	141.03				178	132
8	200	4	100	219.1	114.03				178	156
10	250	10	250	273	273		9.27	15.09	216	216
10	250	8	200	273	219.01	4.19			216	203
10	250	6	150	273	168.03				216	194
10	250	5	125	273	141.03				216	191
10	250	4	100	273	114.03				216	184
12	300	12	300	323.9	323.09		10.31	17.48	254	254
12	300	10	250	323.9	273	4.57			254	241
12	300	8	200	323.9	219.01				254	229
12	300	6	150	323.9	168.03				254	219
12	300	5	125	323.9	141.03				254	216
14	350	14	350	355.6	355.06		11.13	19.05	279	279
14	350	12	300	355 6	323.09	4.78			279	270
14	350	10	250	355 6	273				279	257
14	350	8	200	355 6	219.01				279	248
14	350	6	150	355.6	168.03				279	238
16	400	16	400	406.4	406.04		12.7	21.4	305	305
16	400	14	350	406.4	355.06	4.78			305	305
16	400	12	300	406.4	323.09				305	295
16	400	10	250	406.4	273				305	283
16	400	8	200	406.4	219.01				305	273
16	400	6	150	406.4	168.03				305	264
18	450	18	450	457.2	457.02		14.27	23.8	343	343
18	450	16	400	457.2	406.04	4.78			343	330
18	450	14	350	457.2	355.06				343	330
18	450	12	300	457.2	323.09				343	321
18	450	10	250	457.2	273				343	308
18	450	8	200	457.2	219.01				343	298
20	500	20	500	508	508		15.09	26.2	381	381
20	500	18	450	508	457.02	5.54			381	343
20	500	16	400	508	406.04				381	330
20	500	14	350	508	355.06				381	330
20	500	12	300	508	323.09				381	321
20	500	10	250	508	273				381	308
20	500	8	200	508	219.01				381	298
24	600	24	600	610	610		17.48	31	432	432
24	600	20	500	610	508	6.35			432	381
24	600	18	450	610	457.02				432	343
24	600	16	400	610	406.04				432	330
24	600	14	350	610	355.06				432	330
24	600	12	300	610	323.09				432	321
24	600	10	250	610	273				432	308
