Buttweld Customize Fabrication

Buttweld Customize Fabrication

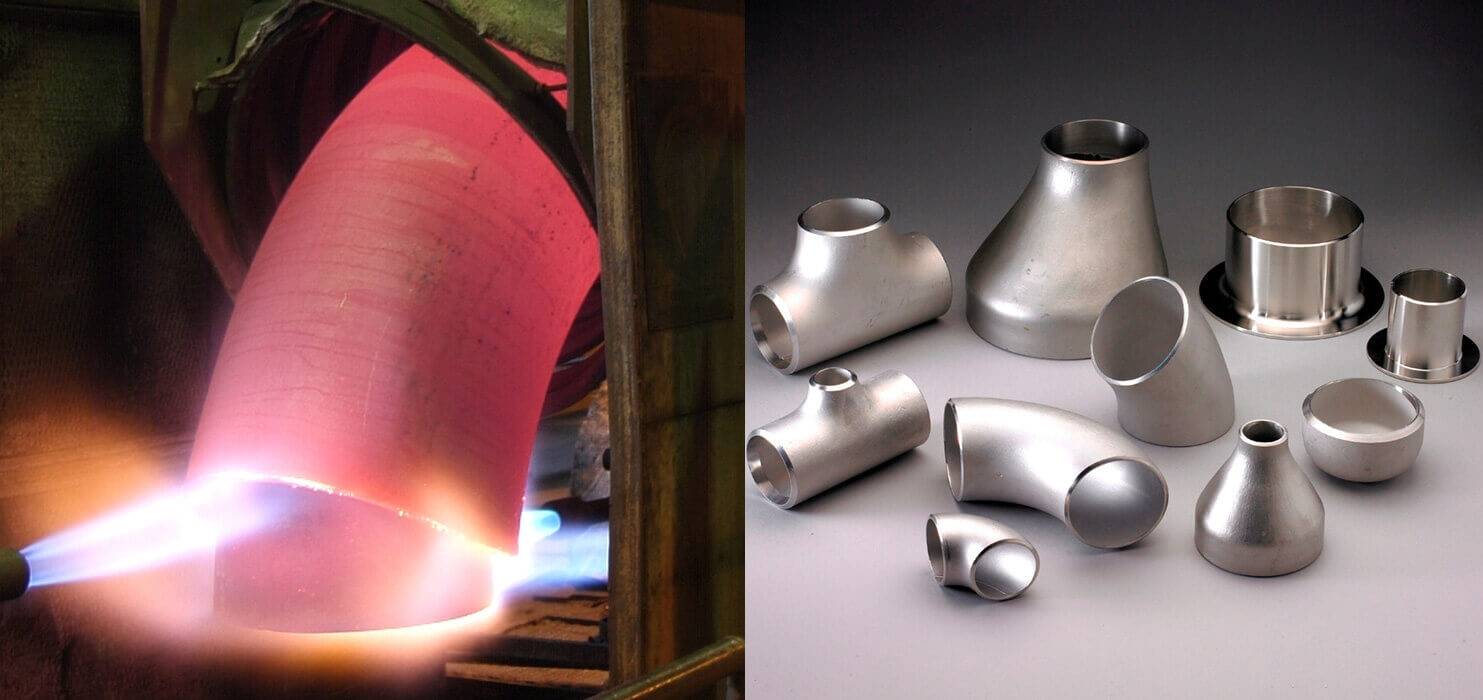

Butt-welded customized fabrication refers to the process of designing and manufacturing specialized pipe fittings tailored to meet specific requirements of a piping system that standard fittings cannot fulfill. These custom-fabricated components are made using butt-welding techniques, which involve welding pipes or fittings end-to-end to create a strong, durable, and leak-proof connection suitable for high-pressure and high-temperature environments.
Customized fabrication may include non-standard sizes, special angles, unique shapes, or combinations of fittings such as tees, elbows, reducers, or crosses. It is often required in complex piping layouts, space-restricted installations, or systems that handle corrosive, high-temperature, or high-velocity fluids.
Materials used in custom fabrication typically include carbon steel, stainless steel, duplex steel, and various alloys, selected based on the application's mechanical and chemical requirements. These components are manufactured following customer specifications and are usually tested for quality through methods like X-ray inspection, hydro testing, and PMI (Positive Material Identification) to ensure safety and compliance with standards like ASME, ASTM, or API.
Customized butt-welded fabrication plays a crucial role in industries like oil & gas, petrochemical, power generation, shipbuilding, and pharmaceutical sectors where precise and reliable pipe fitting solutions are essential.

45° Lateral Tee

45° Long Radius Elbow

90° Short Radius elbow

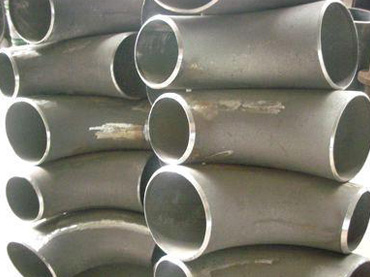

90° Long Radius elbow

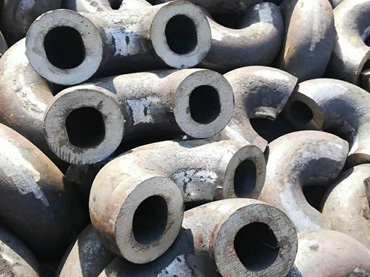

180° Short Radius elbow

180° Short Radius elbow

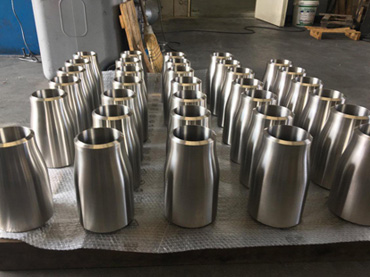

Concentric Reducer

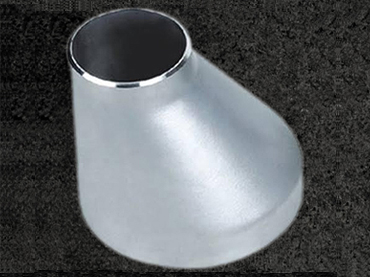

Eccentric Reducer

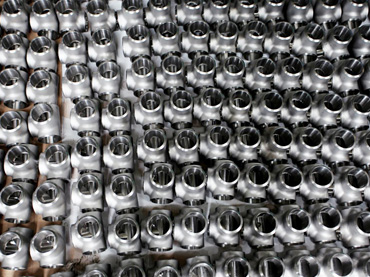

Equal Cross

Equal Tee

Unequal Tee

REDUCING ELBOW
