Buttweld Reducer

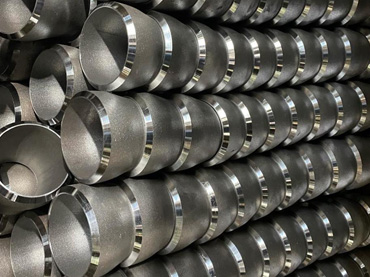

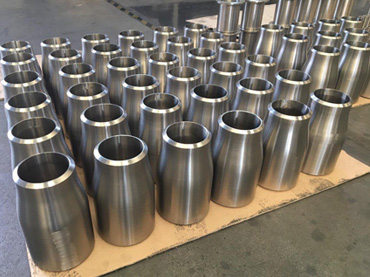

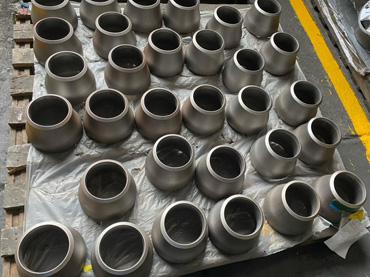

A butt-welded reducer is a type of pipe fitting used in piping systems to connect two pipes of different diameters. It allows for a smooth transition between pipes of varying sizes while maintaining the flow characteristics of the system. Butt-welded reducers are welded to the pipes end-to-end, ensuring a strong, leak-proof, and durable joint, especially in high-pressure and high-temperature environments.

There are two main types of butt-welded reducers:

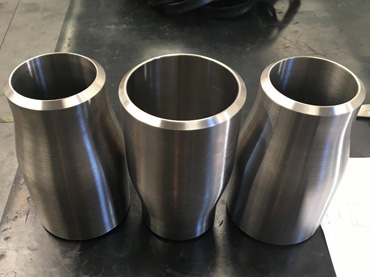

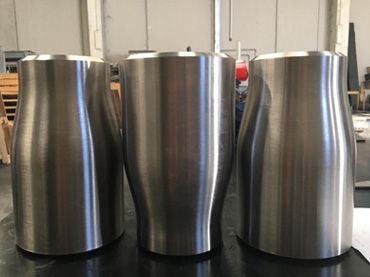

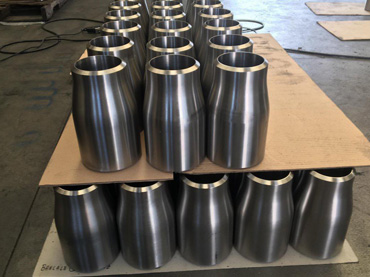

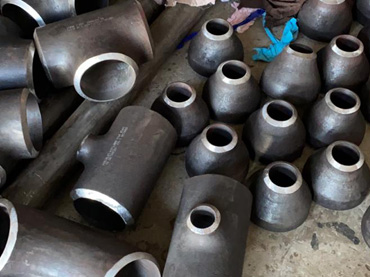

1. Concentric Reducer: This type has a cone-shaped design and the centerline of both ends remains aligned. It is used when there is a need to maintain the same centerline in horizontal pipelines. Concentric reducers are commonly used in vertical piping and pump discharge applications.

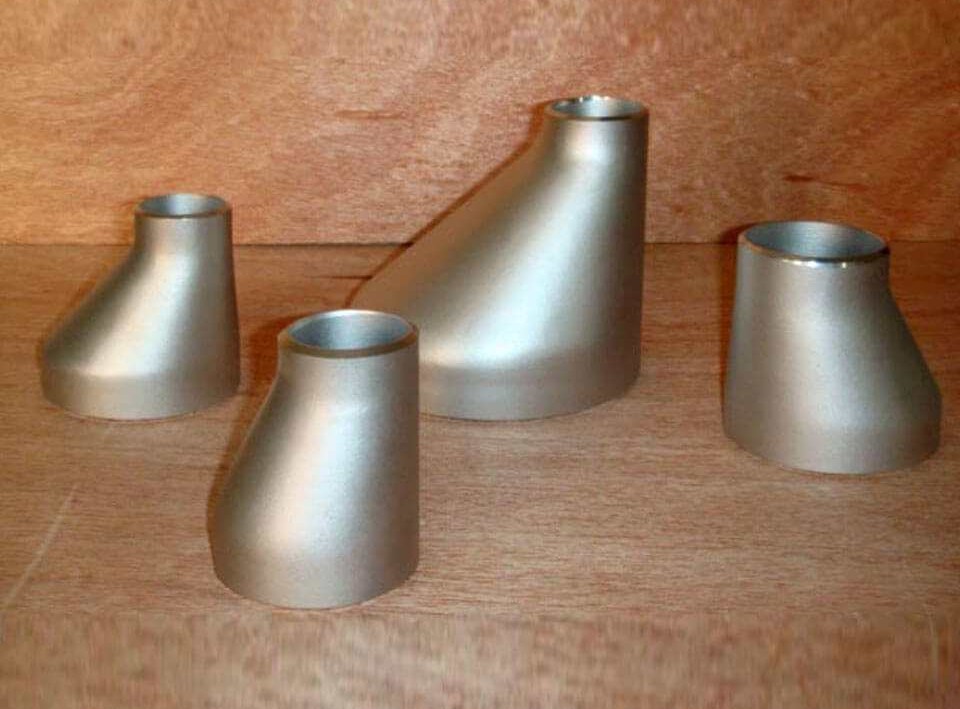

2. Eccentric Reducer: In this type, the centerline of the ends is offset. It is typically used in horizontal pipe runs to prevent air accumulation (top flat) or avoid cavitation, especially in pump suction lines.
Butt-welded reducers are made from materials like carbon steel, stainless steel, or alloy steel, and conform to industry standards such as ASME B16.9. They are essential in systems requiring changes in pipe diameter while ensuring minimal turbulence and pressure loss.

Size:½" NB to 24" NB

Thickness: Sch 5 - Sch 80

Material: Stainless Steel, Carbon Steel and Alloy Steel

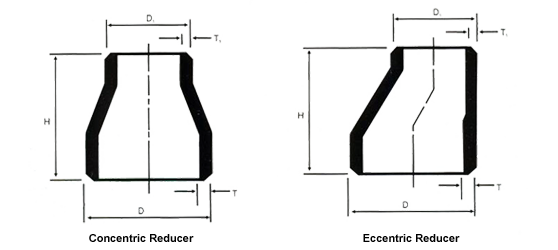

Dimensions

Nominal Pipe Size		D X D1	Thickness
IN	MM	D X D1	T X T1 Sch. 10	T X T1 Sch.40	T X T1 Sch. 80	H
3/4 x 1/2	20 x 15	267 x 21.3	2.11 x 2.11	2.87 x 2.77	3.91 x 3.73	51
1 x 3/4	25 x 20	33.4 x 26.7	2.77 x 2.11	3.38 x 2.87	4.55 x 3.91	51
1 x 1/2	25 x 15	33.4 x 21.3	2.77 x 2.11	3.38 x 2.77	4.55 x 3.73	51
11/4 x 01	32 x 25	42.2 x 33.4	2.77 x 2.77	3.56 x 3.38	4.85 x 4.55	51
11/4 x 3/4	32 x 20	42.2 x 26.7	2.77 x 2.11	3.56 x 2.87	4.85 x 3.91	51
11/4 x 1/2	32 x 15	42.2 x 21.3	2.77 x 2.11	3.56 x 2.77	4.85 x 3.73	51
1 1/2 x 11/4	40 x 32	48.3 x 42.2	2.77 x 2.77	3.68 x 3.56	5.08 x 4.85	64
1 1/2 x 01	40 x 25	48.3 x 33.4	2.77 x 2.77	3.68 x 3.38	5.08 x 4,55	64
1 1/2 x 3/4	40 x 20	48.3 x 66.7	2.77 x 2.11	3.68 x 2.87	5.08 x 3.91	64
1 1/2 x 1/2	40 x 15	48.3 x 21.3	2.77 x 2.11	3.68 x 2.77	5.08 x 3.73	64
2.0 x 1 1/2	50 x 40	60.3 x 48.3	2.77 x 2.77	3.90 x 3.68	5.55 x 5.08	76
2.0 x 1 1/4	50 x 35	60.3 x 42.2	2.77 x 2.77	3.90 x 3.56	5.55 x 4.85	76
2.0 x 0.1	50 x 25	60.3 x 33.4	2.77 x 2.77	3.90 x 3.38	5.55 x 4.55	76
2.0 x 3/4	50 x 20	60.3 x 26.7	2.77 x 2.11	3.90 x 2.87	5.55 x 3.91	76
2 1/2 x 2.0	65 x 50	73.0 x 60.3	3.05 x 2.77	5.16 x 3.90	7.01 x 5.55	89
2 1/2 x 11/2	65 x 40	73.0 x 48.3	3.05 x 2.77	5.16 x 3.68	7.01 x 5.08	89
2 1/2 x 1.0	65 x 25	73.0 x 33.4	3.05 x 2.77	5.16 x 3.38	7.01 x 4.55	89
3.0 x 2 1/2	80 x 65	88.9 x 73.0	3.05 x 3.05 !	5.5 x 5.16	7.62 x 7.01	89
3.0 x 0.2	80 x 50	88.9 x 60.3	3.05 x 2.77	5.5 x 3.09	7.62 x 5.55	89
3.0 x 1 1/2	80 x 40	88.9 x 48.3	3.05 x 2.77	5.5 x 3.68	7.62 x 5.08	89
3.0 x 11/4	80 x 32	88.9 x 42.2	3.05 x 2.77	5.5 x 3.56	7.62 x 4.85	89
4.0 x 3.0	100 x 80	114.3 x 88.9	3.05 x 3.05	6.0 x 5.05	8.55 x 7.62	102
4.0 x 2 1/2	100 x 65	114.3 x 73.0	3.05 x 3.05	6.0 x 5.16	8.55 x 7.01	102
4.0 x 2.0	100 x 50	114.3 x 60.3	3.05 x 2.77	6.0 x 3.09	8.55 x 5.55	102
4.0 x 1 1/2	100 x 40	114.3 x 48.3	3.05 x 2.77	6.0 x 3.68	8.55 x 5.08	102
5.0 x 4.0	125 x 100	141.3 x 114.3	3.40 x 3.05	6.55 x 6.0		127
5 x 3	125 x 80	141.3 x 88.9	3.40 x 3.05	6.55 x 05.05	09.53 x 07.06	127
5 x 21/2	125 x 65	141.3 x 73.0	3.40 x 3.05	6.55 x 05.16	09.53 x 07.01	127
5 x 2	125 x 50	141.3 x 60.3	3.40 x 2.77	6.55 x 03.09	09.53 x 05.55	127
6 x 5	150 x 125	168.3 x 141.3	3.40 x 3.40	7.11 x 06.55	10.97 x 09.53	140
6 x 4	150 x 100	168.3 x 114.3	3.40 x 3.05	7.11 x 06.00	10.97 x 08.55	140
6 x 3	150 x 80	168.3 x 88.9	3.40 x 3.05	7.11 x 05.05	10.97 x 07.06	140
6 x 2 1/2	150 x 65	168.3 x 73.0	3.40 x 2.77	7.11 x 05.16	10.97 x 07.01	140
8 x 6	200 x 150	219.1 x 168.3	3.76 x 3.40	8.02 x 07.11	12.07 x 10.97	152
8 x 5	200 x 125	219.1 x 141.3	3.76 x 3.40	8.02 x 06.55	12.07 x 09.53	152
8 x 4	200 x 100	219.1 x 114.3	3.76 x 3.05	8.02 x 06.00	12.07 x 08.55	152
10 x 8	250 x 200	273.0 x 219.1	4.19 x 3.76	9.27 x 06.00	15.09 x 12.70	178
10 x 6	250 x 150	273.0 x 168.3	4.19 x 3.40	9.27 x 07.11	15.09 x 10.97	178
10 x 5	250 x 125	273.0 x 141,3	4.19 x 3.40	9.27 x 06.55	15.09 x 09.53	178
10 x 4	250 x 100	273.0 x 114.3	4.19 x 3.05	9.27 x 06.02	15.09 x 08.56	178
12 x 10	300 x 250	323.9 x 273.0	4.57 x 4.19	10.31 x 09.27	17.48 x 15.09	203
12 x 8	300 x 200	323.9 x 219.1	4.57 x 3.76	10.31 x 08.20	17.48 x 12.07	203
12 x 6	300 x 150	323.9 x 168.3	4.57 x 3.40	10.31 x 07.11	17.48 x 10.97	203
12 x 5	300 x 125	323.9 x 141.3	4.57 x 3.40	10.31 x 06.55	17.48 x 09.53	203
14 x 12	350 x 300	355.6 x 323.9	4.78 x 4.57	11.13 x 10.31	19.05 x 17.48	330
14 x 10	350 x 250	355.6 x 273.0	4.78 x 4.19	11.13 x 09.27	19.05 x 15.09	330
14 x 08	350 x 200	355.6 x 219.1	4.78 x 3.76	11.13 x 08.20	19.05 x 12.07	330
14 x 06	350 x 150	355.6 x 168.3	4.78 x 3.40 \|	11.13 x 07.11	19.05 x 10.97	330
16 x 14	400 x 350	406.4 x 355.6	4.78 x 4.78	12.70 x 11.13	21.44 x 19.05	356
16 x 12	400 x 300	406.4 x 323.9	4.78 x 4.57	12.70 x 10.31	21.44 x 17.48	356
16 x 10	400 x 250	406.4 x 273.0	4.78 x 4.19	12.70 x 09.27	21.44 x 15.09	356
16 x 08	400 x 200	406.4 x 219.1	4.78 x 3.76	12.70 x 08.20	21.44 x 12.07	356
16 x 06	400 x 150	406.4 x 168.3	4.78 x 3.40	12.70 x 07.11	21.44 x 12.07	356
18 x 16	450 x 400	457.2 x 406.4	4.78 x 4.78	14.27 x 12.70	23.83 x 21.44	381
18 x 14	450 x 350	457.2 x 355.6	4.78 x 4.78	14.27 x 11.13	23.83 x 19.05	381
18 x 12	450 x 300	i 457.2 x 323.9	4.78 x 4.78	14.27 x 10.31	23.83 x 17.48	381
18 x 10	450 x 250	457.2 x 273.0	4.78 x 4.19	14.27 x 09.27	23.83 x 15.09	381
18 x 08	450 x 150	457.2 x 219.1	4.78 x 3.76	14.27 x 08.20	23.83 x 12.07	381
20 x 18	500 x 450	508.0 x 457.2	5.54 x 4.78	15.09 X 14.27	26.19 x 23.83	508
20 x 16	500 x 400	508.0 x 406.4	5.54 x 4.78	15.09 x 1270	26.19 x 21.44	508
20 x 14	500 x 350	508.0 x 355.6	5.54 x 4.78	15.09 x 11.13 \|	26.19 x 19.05	508
20 x 12	500 x 300	508.0 x 323.9	5.54 x 4.78	15.09 x 10.31	26.19 x 17.48	508
20 x 10	500 x 250	508.0 x 273.0	5.54 x 4.19	15.09 x 09.27	26.19 x 15.09	508
20 x 08	500 x 200	508.0 x 219.1	5.54 x 3.76	15.09 x 08.20	26.19 x 12.07	508
24 x 20	600 x 500	610.0 x 508.0	6.35 x 5.54	17.48 x 15.09	30.96 x 26.19	508
24 x 18	600 x 450	610.0 x 457.2	6.35 x 4.78	17.18 x 14.27	30.96 x 23.83	508
24 x 16	600 x 400	610.0 x 406.4	6.35 x 4.78	17.48 x 12.70	30.96 x 21.44	508
24 x 14	600 x 350	610.0 x 355.6	6.35 x 4.78	17.48 x 11.13	30.96 x 19.05	508
24 x 12	600 x 300	610.0 x 323.9	6.35 x 4.78	17.48 x 10.31	30.96 x 17.48	508
24 x 10	600 x 250	610.0 x 273.0	6.35 x 4.19	17.48 x 09.27	13.96 x 15.09	508

Pipe Reducer Material Grades

Stainless Steel Reducer	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer	ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Reducer	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Reducer	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
